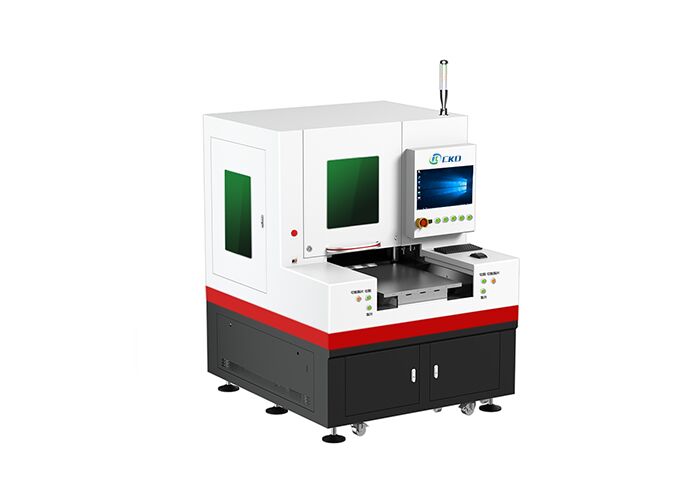

Laser Glass Cutting Machine Offering Flexible Cutting Options Including Straight Lines Curves and Complex Shapes To Accuracy±0.01mm

Product Description:

The Laser Glass Cutting Machine is an advanced and highly efficient solution designed to meet the demanding requirements of modern glass processing industries. Featuring an Infrared Picosecond laser type, this machine ensures unparalleled precision and minimal thermal impact on the glass surface, making it an ideal choice for delicate and intricate cutting tasks. The picosecond laser technology allows for ultra-fast pulses, resulting in clean cuts with reduced micro-cracks and improved edge quality, which is essential for high-end applications.

With dimensions available in two configurations, 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm, the machine offers flexibility to accommodate various workspace sizes and production needs. These compact yet robust dimensions make it suitable for both small-scale workshops and large manufacturing facilities, optimizing floor space without compromising performance.

One of the standout features of this laser glass cutting machine is its drive motor system, which employs an XY linear motor combined with an optical grating scale. This combination guarantees exceptional positioning accuracy and smooth motion control, essential for producing high precision cuts consistently. The linear motor technology reduces mechanical wear and maintenance requirements, while the optical grating scale provides real-time feedback for precise laser path adjustments, ensuring repeatability and reliability in production.

Designed with modern industrial environments in mind, this high precision laser cutting machine supports seamless integration with major automation systems. It is compatible with robot interfaces and automatic loading/unloading systems, facilitating streamlined workflows and increased production efficiency. Furthermore, it supports standard industrial communication protocols such as Modbus and OPC, allowing easy connectivity with existing factory automation and control systems. This compatibility ensures that the machine can be incorporated into complex production lines, enhancing overall operational flexibility.

Durability and customer support are also key aspects of this Fiber Laser Cutting Machine. It comes with a comprehensive 2-year warranty that covers major components, including the laser source and control system, providing peace of mind and ensuring long-term operational stability. Additionally, the manufacturer offers 24/7 technical support with both remote and on-site service options, guaranteeing prompt assistance and minimizing downtime in case of any technical issues.

The polygonal glass cutting machine is engineered to deliver superior performance in cutting various types of glass materials, including tempered glass, laminated glass, and ultra-thin glass sheets. Its high precision capabilities make it an excellent tool for industries such as electronics, automotive, architecture, and decorative glass manufacturing, where accuracy and edge quality are paramount.

In summary, this Laser Glass Cutting Machine combines cutting-edge Infrared Picosecond laser technology with advanced mechanical design and intelligent automation compatibility. Its compact dimensions, reliable XY linear motor drive system, and robust warranty and service program make it a top choice for businesses seeking a high precision laser cutting solution. Whether integrated into automated production lines or used as a standalone system, this Fiber Laser Cutting Machine offers exceptional performance, accuracy, and versatility, solidifying its position as a leading polygonal glass cutting machine in the market.

Features:

• Product Name: Laser Glass Cutting Machine
• Model: Glass Cutting And Splitting Machine (All-in-One)
• Drive Motor: XY Linear Motor with Grating Ruler for precise positioning
• Voltage & Power: Less than 8KW power consumption, operates on AC220V
• Noise Level: Operating noise level is 70dB, equipped with a built-in silencing system suitable for low-noise environments
• Compatibility: Supports integration with major automation systems, including robot interfaces and automatic loading/unloading systems
• Communication: Compatible with standard industrial communication protocols such as Modbus and OPC

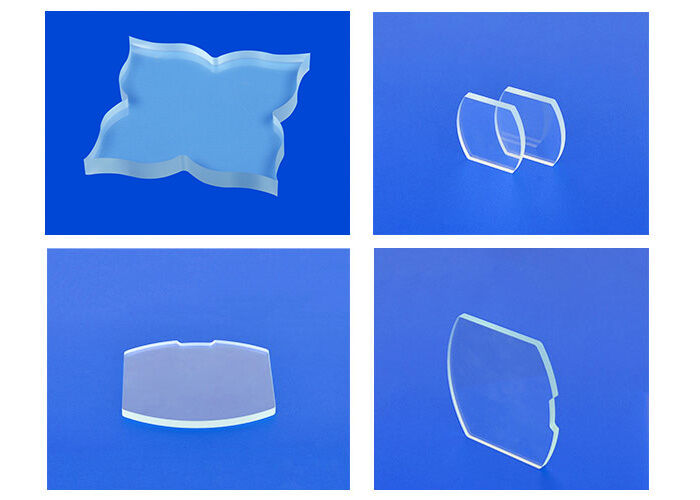

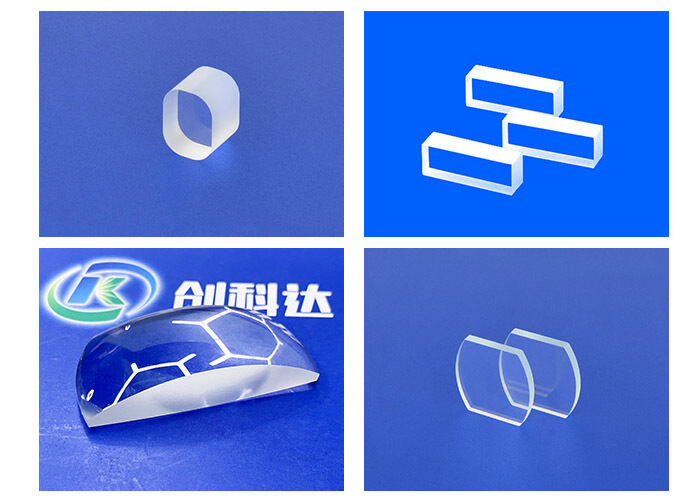

• Special Features: Capable of irregular glass cutting, ideal as a colored glass cutting machine
• Application: Functions effectively as a thick glass laser cutting machine for various industrial uses

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and others, is designed to meet a wide range of glass cutting needs with exceptional precision and reliability. Originating from China and certified with ISO CE standards, these machines are ideal for industries that demand high accuracy, with a cutting accuracy of ±0.01mm and a splitting laser source wavelength of 10.6µm, ensuring clean and precise cuts on various types of glass.

These polygonal glass cutting machines are perfect for applications in the production of architectural glass, automotive glass, electronic display panels, and decorative glass products. Their compatibility with automation systems, including support for robot interfaces and automatic loading/unloading systems, makes them highly suitable for integration into advanced manufacturing lines, improving efficiency and reducing manual labor. Standard industrial communication protocols like Modbus and OPC are supported, facilitating seamless communication with existing factory automation setups.

Operating best in environmental conditions between 15°C and 30°C, with 20%-80% relative humidity, the CKD laser glass cutting machines are designed to perform optimally in both cleanrooms and industrial environments. This environmental protection glass laser cutting machine ensures minimal environmental impact by employing energy-efficient laser technology and reducing waste through precise cutting, making it a sustainable choice for modern glass processing facilities.

The single table glass cutting machine models in the CKD lineup provide a versatile solution for businesses requiring flexibility and high throughput. With a supply ability of 60 sets per month, and packaging details including wooden vacuum packaging to ensure safe delivery within 25-45 days, CKD offers a reliable supply chain for manufacturers worldwide. The machines can be purchased with a minimum order quantity of one unit, and pricing is negotiable to fit various budget requirements.

Payment terms such as L/C and T/T are supported, providing convenience for international buyers. The acceleration capability of 1G further enhances the speed and precision of cutting operations, making CKD’s laser glass cutting machines an excellent investment for glass processing companies seeking advanced technology, environmental responsibility, and integration flexibility.

Customization:

CKD offers a range of high-quality Environmental protection glass laser cutting machines under the model numbers CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. These Fiber Laser Cutting Machines are designed and manufactured in China and are certified with ISO CE standards to ensure quality and reliability.

The machines feature cutting areas of 400mm*500mm, 600mm*700mm, and 600mm*900mm, supporting linear speeds of up to 1000mm/s at working frequencies of 50HZ/60HZ. CKD provides flexible customization options to meet various environmental protection glass laser cutting requirements with a minimum order quantity of 1 set. Pricing is negotiable to accommodate specific customer needs.

Each unit is carefully packaged using wooden vacuum packaging to ensure safe delivery. The delivery time ranges from 25 to 45 days, and payment terms include L/C and T/T. CKD maintains a monthly supply ability of 60 sets, guaranteeing timely fulfillment of orders.

Maintenance is straightforward with recommended optical alignment every 200 hours and coolant replacement every 1000 hours. Additionally, regular remote diagnostics and software updates are available to keep the Fiber Laser Cutting Machine operating at peak performance.

Choose CKD’s Environmental protection glass laser cutting machine for efficient, precise, and environmentally friendly laser cutting solutions backed by professional customization services and strong after-sales support.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure it arrives in perfect condition. It is securely placed in a sturdy wooden crate with internal foam padding to protect against shocks and vibrations during transit. All delicate components are wrapped with anti-static and anti-scratch materials. The packaging is sealed and clearly labeled with handling instructions such as "Fragile," "Handle with Care," and "This Side Up" to prevent damage.

Shipping:

We offer multiple shipping options to meet your needs, including air freight, sea freight, and express courier services. The Laser Glass Cutting Machine is shipped with comprehensive insurance coverage for added security. Prior to shipping, the machine undergoes a thorough inspection and testing to ensure it is fully operational. Shipping documentation, including user manuals, warranty cards, and customs paperwork, is included in the package. Delivery times vary based on destination and shipping method, and tracking information is provided upon dispatch.
